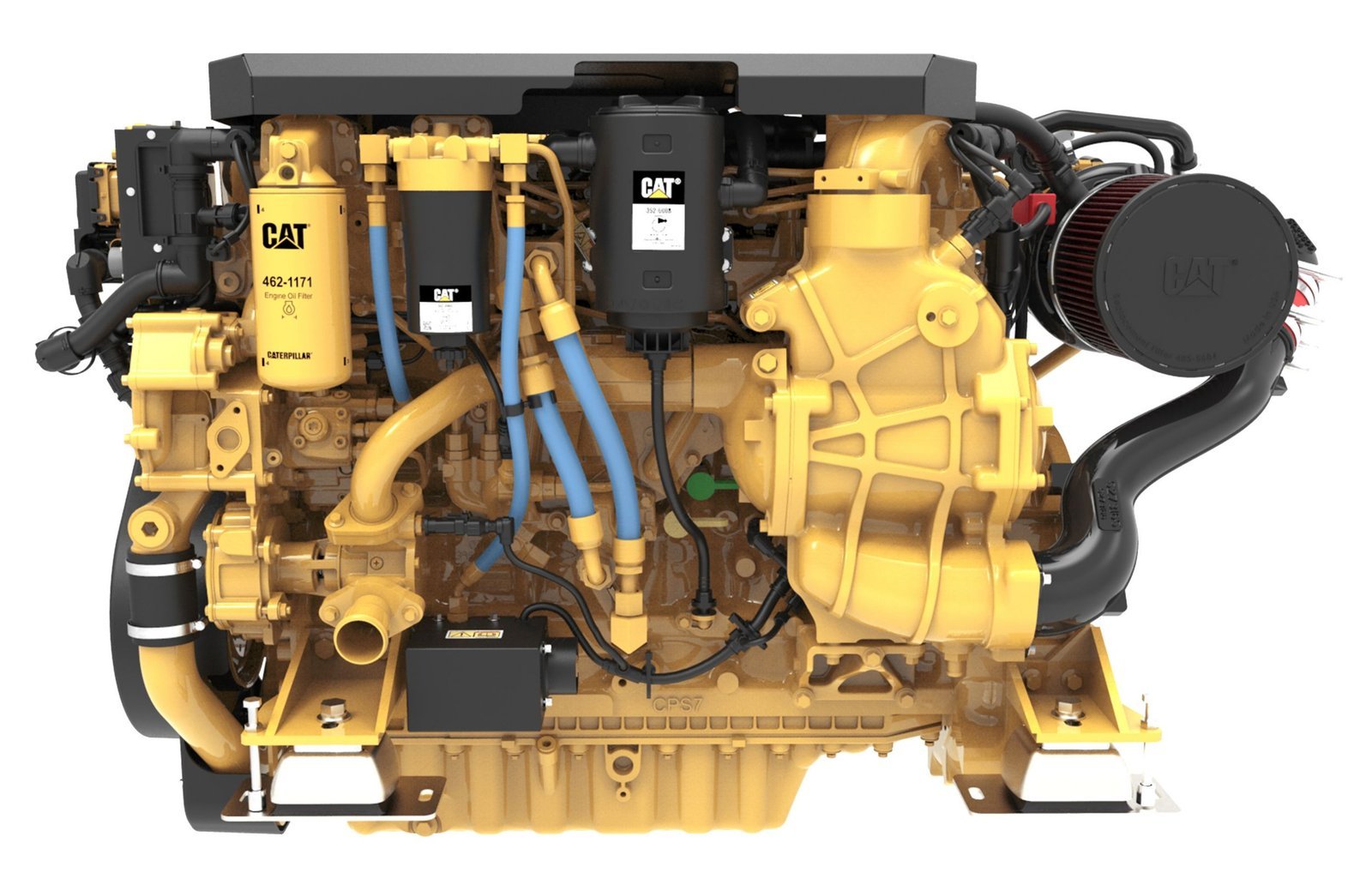

Cat® C7.1 ACERT Marine Generator Set – Redefining Power at Sea
The Cat® C7.1 Diesel Marine Generator Set offers a compact, powerful, and environmentally friendly solution for both commercial and private vessels. Available with power outputs of 100, 118, and 150 ekW at 50 Hz, and 118, 150, and 175 ekW at 60 Hz, this generator set meets U.S. EPA Tier 3, IMO II, and EU CC2 emission standards. It comes with either 12V or 24V configurations and features a heat exchanger cooling system for optimal efficiency.
Technical Specifications
- Minimum Power: 100 ekW (125 kVA)
- Maximum Power: 200 ekW (250 kVA)
- Frequency: 50 Hz / 60 Hz
- RPM: 1500 rpm (50 Hz) / 1800 rpm (60 Hz)
- Emission Standards: EPA Tier 3, IMO II, EU CC2
Engine Features
- Engine Type: Inline 6-cylinder, 4-stroke diesel
- Displacement: 7.1 L
- Bore x Stroke: 105 mm x 135 mm
- Fuel System: Common Rail
- Power Management: Electronic
Generator Features
- Winding Pitch: 2/3
- Number of Poles: 12
- Insulation Class: Class H
- Protection Class: IP23
- Voltage Regulator: Solid State
Dimensions & Weight
- Width: 956 mm
- Height: 1263 mm
- Length: 1935 mm – 2116 mm
- Weight: 1652 – 1840 kg
All Technical Processes Secured by CG Marin
At CG Marin, we do more than just sell engines. We provide complete technical support and after-sales service for shaft-rudder systems, hydraulic solutions, transmission systems, and all propulsion components. Especially for Cummins engines, our scheduled maintenance and performance optimization services ensure you’re operating at full efficiency on the water.
27 Years of Experience Steering the Seas
Shaped by the extensive experience of our founder, Ceyhan Güvenç, with over 27 years in the industry, CG Marin stands out not only in engine systems but also with custom-built boats, robotic solutions, and aesthetic engineering projects. Our approach blends technology and design, making us the ideal choice for sea enthusiasts who value both performance and style.
Power Your Journey at Sea
Combining CG Marin’s engineering expertise with world-class brands like Cat® and Cummins, we offer not just equipment, but a durable, reliable, and powerful performance partner. For those seeking speed, stability, and safety at sea, CG Marin is your trusted destination.
